Vintage Industrial Square Aluminum Junction Box from EOW with a Highly Polished Finish



DESCRIPTION

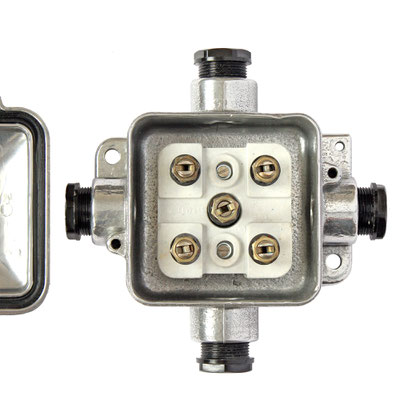

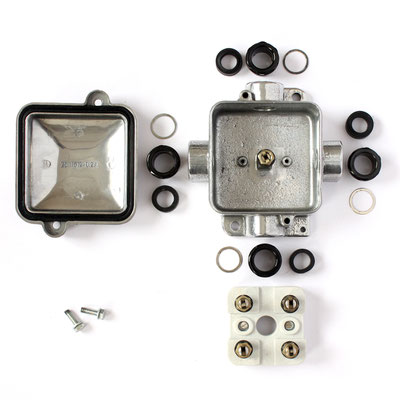

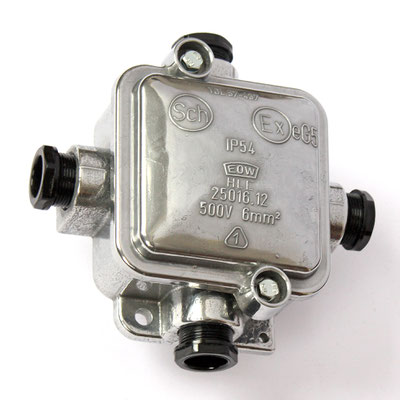

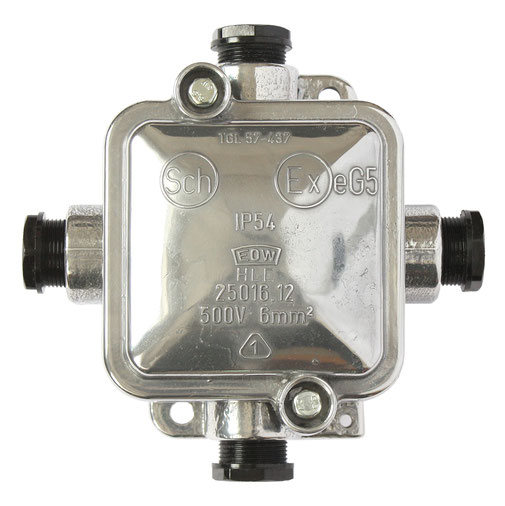

This vintage industrial 4-way square aluminum junction box mounts easily to any wall or ceiling. The cap proudly displays the TGL (Technischen Normen, Gütevorschriften und Lieferbedingungen) number and other technical information.  TGL was the ISO standards institute of the former German Democratic Republic from 1955 - 1990. The internal branch insert is made of porcelain. This highly polished junction box accents any living or workspace and is suitable for both indoor and outdoor use. This box has four leads that can be closed off with seals and caps. The cap screws off to access the internal wiring junction. On the outside of the housing are two screw mounting points. Every part has been inspected, cleaned and checked and polished and is in excellent condition. The housing can also be connected to ground.



TECHNICAL DETAILS

  • Material: aluminium, Porcelain, Bakelite
  • Protection class: IP 54
  • Voltage: 500 V
  • Clamps/Poles: ceramic, 4-poles + E, to 6 mm2
  • Width, height: 12  x12 cm / 4.7 in
  • Wall Clearance: 7.5 cm / 3 in
  • Weight: 1 kg / 2.2 lbs
  • Cable glands: Bakelite, Aluminum 4 x PG 21
  • Manufacturer: VEB Elektroinstallation Oberweimar  (EOW)
  • Made in East Germany (DDR)



FURTHER INFORMATION

  • The article pictured serves as a template and the same model in a similar state will be delivered.
  • The article may vary slightly from the picture.
  • According to § 25a of the German Sales Tax Act (UStG) no statement of the sales tax.





Abzweigdose EOW Alu groß

95,00 €

  • 1 kg
  • verfügbar
  • Bearbeitungszeit: 10 Werktage1
